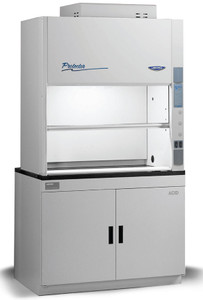

Basic 70 Laboratory Hood with Blower

Basic 70 (6’) fume hoods are ideal for general chemical requirements and work well for individual workstations. These hoods are factory furnished with .25" thick tempered safety glass counterbalanced sash. The interior and exterior are constructed of glacier white, epoxy coated, 16 gauge steel. The right side fixture panel is designed to accept up to three service fixtures, one electrical receptacle, and a guardian air monitor. Work surface and base cabinet or stand are required for operation and sold separately. Built-in blower model. Contact your Arrowhead sales representative for additional information. Explosion proof models, base units, plumbing, and electrical services available upon request.

COMPLIANCE:

• SEFA 1-2002 (Laboratory Fume Hoods)
• NFPA 45-2000 (Fire Protection for Laboratories Using Chemicals) section 6-1 through 6-14
• ASTM E84-01 Surface Burning Characteristics of Building Materials
• ASHRAE 110-95 (Method of Testing Performance of Laboratory Fume Hoods)
• ANSI Z9.5-1993 (Laboratory Ventilation)
• UL 3101-1/61010-1
• CAN/CSA C22.2 No. 1010.1

FEATURES:

• By-pass airflow design
• Durable glacier white epoxy-coated 16 gauge steel exterior and interior resists chemical exposure.
• Vapor-proof incandescent lights
• Vertical-rising tempered safety glass sash
• Adjustable two-piece baffle
• Curved air foil
• Blower and light switches (non-explosion-proof models)
• Right side fixture panel factory-prepared to accept up to three service fixtures, one electrical duplex and one airflow monitor (kits sold separately)
• Right interior wall factory-prepared for one cupsink and turret (cupsink and turret kit sold separately)
• Epoxy-coated steel 10.31” OD exhaust connection
• ETL listed (115 volt models)
• CE conformity (230 volt models)

OPTIONS:

• Versatile built-in blower that mounts on top of the hood liner, above the hood or at a remote location
• Explosion-proof light and blower
• International electrical configurations
• Unassembled hoods

REQUIRED ACCESSORIES:

• Remote Blowers (except Built-In Blower Models)
• Ductwork
• Base cabinets
• Adjustable Height Base stands
• Solid Epoxy Flat Work Surfaces

OPTIONAL ACCESSORIES:

• Service fixture kits
• Electrical receptacle kits
• Cupsink and turret kit
• Airflow monitors
• Sash stops
• Fire extinguishers

SPECIFICATIONS:

• Weight: 280.0 lbs
• Weight metric: 127.0 kg
• Dimensions: 47.0" w x 25.0" d x 48.0" h
• Dimensions metric: 119.4 cm x 63.5 cm x 121.9 cm
• Electrical: 100-115 volts, 50/60 Hz, 1 amp,
• Domestic Product Subcategory: General Chemistry
• Nominal Width: 4' Blower
• Requirements: Remote blower required
• CFM/Static Pressure at 100 fpm: With sash full open, exhausts 720 CFM at 0.25" H2O maximum external static pressure
• Conformance: ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, NFPA 45, SEFA 1, UL
• Electrical Standard: Domestic
• Lighting: incandescent
• Style: Benchtop

**Storage cabinet and work surface sold separately**
